이음새가 없는 스테인레스 강철 튜브 022Cr19Ni10 0Cr18Ni9 / ASTM 304L 304 강관
Product Details
| 물자: | TP304 TP304L TP316 TP316L | 끝내기: | 단련되고는 & 소금물에 절여지는 해결책 |
|---|---|---|---|
| 신청: | boiler&heat 교환기, 에너지, 석유화학 제품, 광업, 음식, 종이, 가스 및 유동성 기업 | 모양: | 용접된 관 |
| OD: | 15.9mm에서 406.4mm | 무게: | 0.89mm에서 5mm |
| 강조하다 |
ASTM 이음새가 없는 스테인레스 강 Tube,022Cr19Ni10 이음새가 없는 스테인레스 강 Tube,0Cr18Ni9 이음새가 없는 스테인레스 강 강관 |
||
Product Description

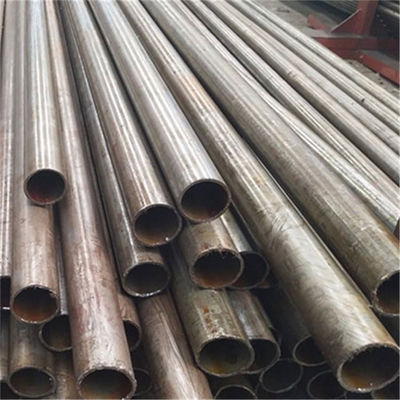

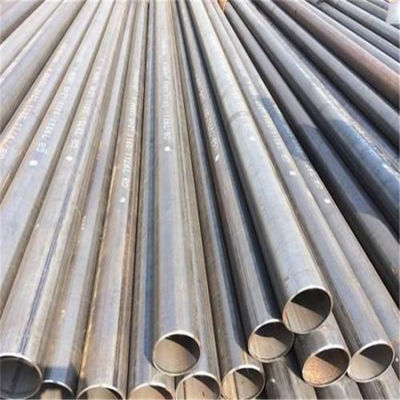

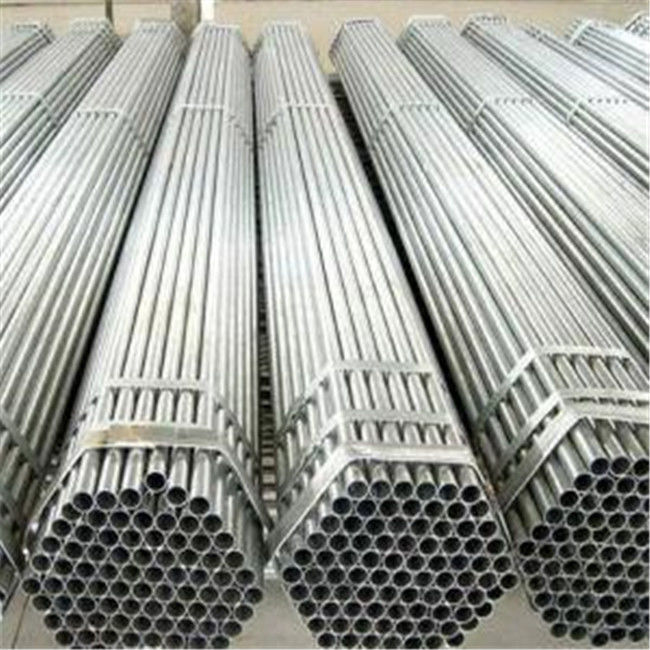

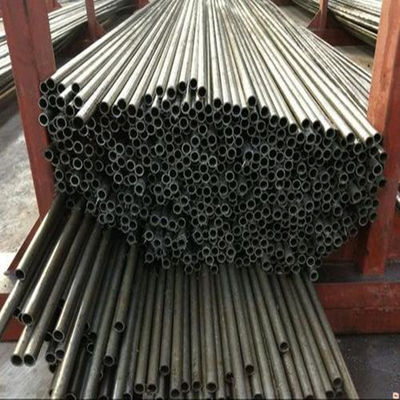

Seamless Stainless Steel Tube 022Cr19Ni10 0Cr18Ni9 / ASTM 304L 304 Steel Pipe
Related production:
(1)Cold rolled steel coils cut to plate
Thickness: 0.5mm-3.0mm width: 800mm/1250mm
(2)Galvanized steel plate
Galvanized steel coils cut to plate
Thickness: 0.1mm-2.5mm width: 600mm/800mm/1250mm
(3) Al-zinc coils and plate
(4)Seamless steel pipe, seamless steel tube, seamless pipe, Hollow bar sizes: outer diameter: 8mm-800mm, wall thickness: 1mm-80mm
(5) Round bar
Material: S235JR, 1045, 1018, 1518, 1020, 41040, 4340, 8620 and other materials
Diameters: 3mm- 800mm
(6)steel profile
angle bar; channel bar; h beam; rectangular tubes
ASTM A249 Standard :
| Size OD | Nominal Wall | Outside Diameter | Length | Wall |
| 1/2" (12.7) | 0.065" (1.65)/0.049" (1.25) | +/-0.005 (0.13) | +1/8" (3.18) - 0 | +/-10.0% |
| 3/4" (19.1) | 0.065" (1.65)/0.049" (1.25) | +/-0.005 (0.13) | +1/8" (3.18) - 0 | +/-10.0% |
| 1" (25.4) | 0.065" (1.65)/0.049" (1.25) | +/-0.005 (0.13) | +1/8" (3.18) - 0 | +/-10.0% |
| 1-1/2" (38.1) | 0.065" (1.65)/0.049" (1.25) | +/-0.008" (0.20) | +1/8" (3.18) - 0 | +/-10.0% |
| 2" (50.8) | 0.065" (1.65)/0.049" (1.25) | +/-0.008" (0.20) | +1/8" (3.18) - 0 | +/-10.0% |
| 2-1/2" (63.5) | 0.065" (1.65) | +/-0.010" (0.25) | +1/8" (3.18) - 0 | +/-10.0% |
| 3" (76.2) | 0.065" (1.65) | +/-0.010" (0.25) | +1/8" (3.18) - 0 | +/-10.0% |
| 4" (101.6) | 0.083" (2.11) | +/-0.015" (0.38) | +1/8" (3.18) - 0 | +/-10.0% |
| 6" (152.4) | 0.083" (2.11) | +/-0.030" (0.76) | +1" (25.4) - 0 | +/-10.0% |
| 6" (152.4) | 0.109" (2.77) | +/-0.030" (0.76) | +1" (25.4) - 0 | +/-10.0% |
| 8" (203.2) | 0.109" (2.77) | +0.061" (1.55)/-0.031" (0.79) | +1" (25.4) - 0 | +/-10.0% |
Material Grade :
| American Standard | TP304 , TP304L , TP310S , TP316 , TP316L , TP316Ti , TP321 , TP347 , 904L , S31803 Etc |
| European Standard | 1.4301 , 1.4306 , 1.4845 , 1.4401 , 1.4404 , 1.4571 , 1.4541 , 1.4550 , 1.4539 , 1.4462 Etc |
| German Standard | X5CrNi18-10 , X2CrNi19-11 , X12CrNi25-21 , X5CrNi17-12-2 , X5CrNi17-12-3 , X2CrNiMo18-14-3 , X6CrNiTi18-10 , X6CrNiTb18-10 Etc |
1 . OD ( Outer Diameter ) : 15.9mm to 406.4mm
2 . WT ( Wall Thickness ) : 0.89mm to 5mm
3 . Length : According to customer's requirement
4 . Standards : ASTM A312; ASTM A269; ASTM A789; ASTM A790 ect
5 . Process Method : ERW, EFW etc
| Application : | a) For fluid and gas transport |
| b) Structure and machining | |
| c) Heat exchanger pipes etc | |
| Advantages : | a) Superior surface finish |
| b) Better mechanical property | |
| c) More precise dimension | |
| d) Perfect inspection method and inspection equipment | |
| Price Item : | FOB, CFR, CIF or as negotiation |
| Payment : | T/T, LC or as negotiation |
Product Highlights
Seamless Stainless Steel Tube 022Cr19Ni10 0Cr18Ni9 / ASTM 304L 304 Steel Pipe Related production: (1)Cold rolled steel coils cut to plate Thickness: 0.5mm-3.0mm width: 800mm/1250mm (2)Galvanized steel plate Galvanized steel coils cut to plate Thickness: 0.1mm-2.5mm width: 600mm/800mm/1250mm (3) Al...
