관식 공기 예열기를 위한 용접된 경도 CS / SS 보일러 핀 관
Product Details
| 타입: | 탄미익 관, 열교환기 관 | 애플리케이션: | 히이터 부속, 열교환기 |
|---|---|---|---|
| 탄미익 물자: | 탄소 강철, 스테인리스, 304L/316LStainless 강철 | 포장: | 탄미익 관의 항해에 적당한 패킹 |
| 색: | 맞춤화됩니다 | 패키지: | 뭉치, 등에서 강철 구조를 가진 나무로 되는 케이스. |
| 강조하다 |
경도 보일러 핀 관,CS 보일러 핀 관,SS 보일러 핀 관 |
||
Product Description

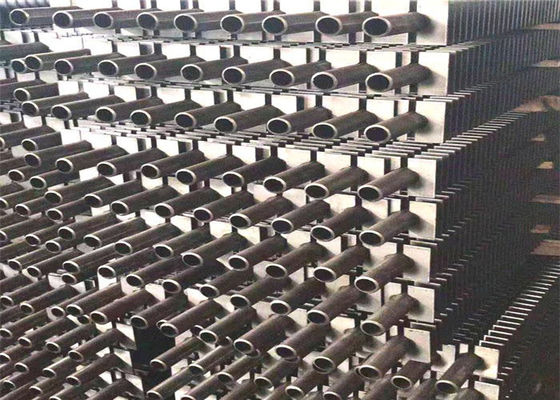

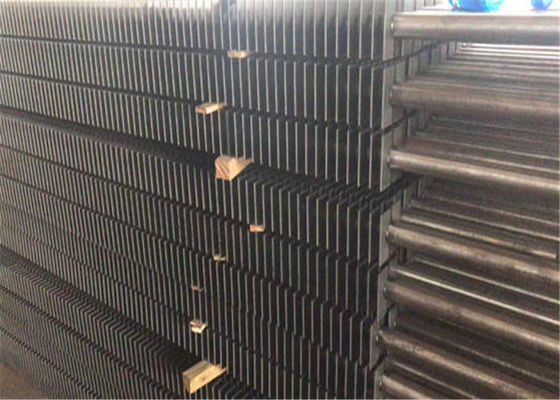

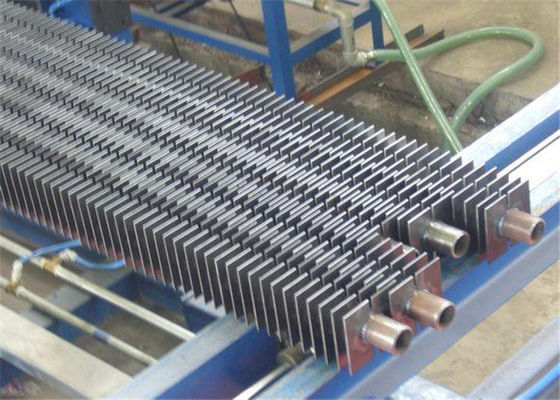

Welded Longitudinal CS / SS Boiler fin Tube For Tubular Air Heater
Product Introduction
1. Seamless stainless steel /incoloy tube
2. High quality, high ohmic NiCr alloy wire
3. High thermal efficiency ,3 times than normal heater pipe
4. Good mechanical strength
Advantages of low fin heater tube
1. low capital costs
2. easy control of heat output
3. high thermal efficiency
4. low need for maintenance
5. long service life
6. safe to operate
7. extensive use
8. customized to meet your specific application need
Features of low fin heater tube
1.We offer standard as well as customized models finned heater tube
2.We offer different tube diameters like 6.5mm,8mm.8.5mm,9mm,10mm,12mm and others, different length range 10mm to 6000mm voltage: 110V 180V 220V 230V 280V 380V or as customer's demands Wattage:0.5KW to 15KW
3.We offer different sheath materials. It can be availed in different materials like Incoloy 800, SS 304, SS 321, SS 316, Copper & Titanium
4.We offer various shapes as customer demand, immersion heater with flange or screw, explosion proof heater.
5.Various terminal options are available
6.Various shapes and sizes are available
7.Durable and has longer life
Applications of low fin heater tube
1. Mechanical industry
2. Automobile industry
3. Textile industry
4. Food Industry
5. Household appliances
6. Other static or moving air environment
All applications must be considered the suitability of the sheath material.
Specifications
1). Add the heat exchange area and reduce the number of tubes, also increase the fume flow section area to reduce the fume speed and abrasion.

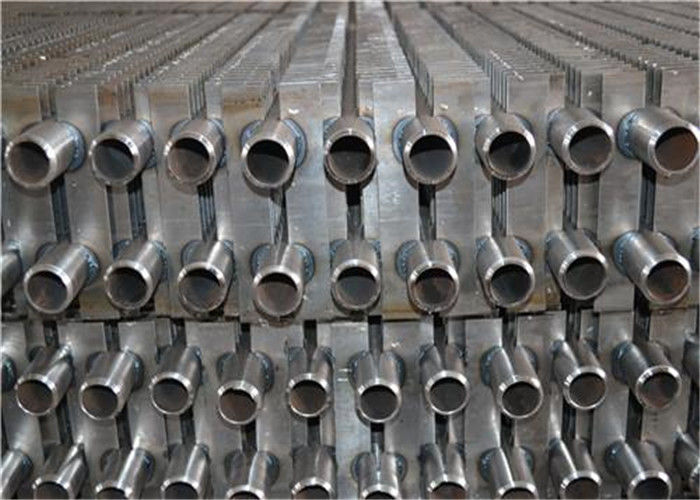

2). H type fin tube can be made to double H type fin tube, high rigidness to fit long tube row.
3). H type fin economizer arranged in line to make the space into many small zones, averaged air flow to reduce the abrasion.
4). With straight channel to gain the best ash-blowing effect.
5). The compact structure to reduce the weight and reduce the manufacturing cost.
| Base Tube Material | Stainless Steel, Carbon Steel, Alloy Steel, Copper Alloy,Aluminum ,SA179 | ||
| Fin Material | Aluminum, Copper Alloy, Stainless Steel, Carbon Steel | ||
| Standard | ASME SA213/ASTM; ASME EA 106, ASME SA178, ASTM B1111 | ||
| Fin depth | 0.5-3mm | ||
| Base pipe O.D | 12.7-18mm | ||
| Fins per inch | 8-20Nos (as customer's request) | ||
| Test Requirement | Physical Property Test, Chemical Composition Analysis, Non-Destructive Test, Other Inspection and Test as customer's requirement. | ||
| Application | Air Cooler, Charge Air Chiller, Condenser, Evaporator, Fluid Cooler, Gas Cooler, Oil Cooler, Radiator, Refrigeration, Steam to Air Heat Exchange, super heater etc. | ||
Company Profile
Zhangjiagang Hua Dong Energy Technology Co., Ltd. is a high-tech enterprise specialized in producing all kinds of stainless, carbon and alloy steel tubes and pipes, steel plates which are widely used in the field of boiler&heat exchanger, energy, petrochemical, mining, food, paper, gas and fluid industry. And we have passed the attestations including ASME, TUV, Grade A, ISO9001, EN12952, EN10216, SO3834.
The company is the subsidiary of Zhangjiagang Hua Dong Boiler Co., Ltd, which is the most leading boiler and boiler parts manufacturer in China with a history of 35 years and annual turnover of 110 million U.S.A. dollars. Our products have been exported to over 30 countries like United States, Australia, Vietnam, Pakistan, Albania, Cambodia, India, Indonesia, South Korea, the Philippines, Turkey, Saudi Arab, Germany, Russia, Chile, Syria, Thailand, Bangladesh, France, Algeria, Mongolia and Singapore, Cuba, Iraq, Italy, Spain, Japan, Yugoslavia, Sri Lanka, the Czech republic, kyrgyzstan, Canada, Malaysia, the United Kingdom and so on.
Location:
Our company locates in Zhangjiagang city which is a port city, and is only 120km far away from Shanghai, 60km far away from Suzhou and 60km far away from Wuxi. The traffic is very convenient.
