| Place of Origin: | China |
| 브랜드 이름: | HDT |
| 인증: | ASME, ISO |
| Model Number: | Boiler tube |
| Minimum Order Quantity: | 50 TONS |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | 바다 포장 |
| Delivery Time: | 30~60 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1000 tons/month |
| Material: | Cabon Steel/Stainless Steel/Alloy Steel | 길이: | 맞춤형 |
|---|---|---|---|
| Thickness: | 1 - 60 mm | 지불 기간: | 전신환, L/C (신용장), 웨스턴 유니온, 기타 등등. |
| Certificate: | ISO, SGS, BV, Etc. | Application: | Boiler, Superheater, Heat Exchanger |
| 사용: | 발전소에 대해 | Keywords: | Boiler Steel Pipe |
| 강조하다: | 1mm Boiler Steel Pipes,Optimal Energy Production Boiler Steel Pipes,60 mm Boiler Steel Pipes |
||
Optimal Energy Production Boiler Steel Tubes
What standards apply to boiler tubes?
Common standards include ASME (e.g., SA-192, SA-213), DIN (e.g., DIN 17175), and GB (e.g., GB 5310).
Product Description
12Cr1MoV is a widely used steel grade for boiler superheaters, headers and main steam ducts in high-pressure, ultra-high-pressure, and subcritical power stations. At 580°C, it still has high thermal strength and oxidation resistance, and has high long-lasting plasticity. The production process is simple and the welding performance is good, but it is sensitive to the normalization cooling rate. Long-term use at 580°C will produce the second type of tempering brittleness caused by the segregation of impurity elements such as phosphorus at grain boundaries. Long-term use can also cause pearlite spheroidization. This steel is mainly used after normalizing and high-temperature tempering, and is used to manufacture superheated steel pipes, conduits, serpentine pipes and other corresponding forgings in high-pressure equipment with a working temperature of no more than 570 °C.
| Standard specification | ASTM A178, ASME SA178 |
| Grade | Grade A, Grade C, Grade D, BKW, NBK, GBK |
| Available sizes | 4 Inch to 26 Inch, Customized Size Available |
| OD | 12.7mm to 127mm |
| Wall thickness | 1.5mm to 6.0mm |
| Length | 6m-25m, Custom Double / Single Random |
| End Finish | Plain End, Beveled End, Treaded Protected With Plastic End Caps |
| Shape | Round, Coiled, “U” Bend, Rectangular, Hydraulic |
| Manufacturing types | Welded & ERW SA178 & A178 Tubes |
| Fabricated & CDW A178 & SA178 Tubes | |
| Common uses & application |
|
| Producing process | Electric-Resistance-Welded |
| Delivery Condition | Annealed, Normalized, Tempered, Heat Treatment, BK, BKS |
| Surface | Varnish |
| Common Supply Terms followed |
|
Features
Technical Parameters
| Attribute | Value |
|---|---|
| MOQ | 10 Ton |
| Certificate | ISO, SGS, BV, Etc. |
| Surface Treatment | Polish |
| Outer Diameter | Customized |
| Payment Term | T/T, L/C, Western Union, Etc. |
| Standard | ASME |
| Wall Thickness | Customized |
| Package | Standard Export Package |
| Shape | Tube |
| Material | Boiler Steel |
Applications
HDT Boiler Steel Tube is widely used in boilers for heat exchange and energy-saving purposes. It is a type of carbon steel pipe specifically designed to withstand high pressure and temperature. It is made with a rigorous quality control process to ensure superior quality and performance. The tubes are available in different sizes and outer diameters to meet the needs of different customers. They come with a polished surface to provide a smooth and clean finish.
This product is a must-have for any industry that requires boilers for operation. It is commonly used in power plants, paper and pulp industry, sugar industry, oil refineries, and chemical plants. The tube has a minimum order quantity of 50 tons and a delivery time of 30 to 60 working days. It is supplied with standard export packaging and comes with an ASME and ISO certification. Payment terms include T/T and L/C.
HDT Boiler Steel Tube is a great choice for high-pressure and temperature applications. It is made with high-quality carbon steel and comes with a MOQ of 10 tons. It is corrosion resistant and provides a smooth surface finish. With a competitive price and an assurance of delivery, this product is sure to be a perfect fit for any industry.
Customization
Support and Services
We provide technical support and service for Boiler Steel Tube.
Our services include:
Packing and Shipping

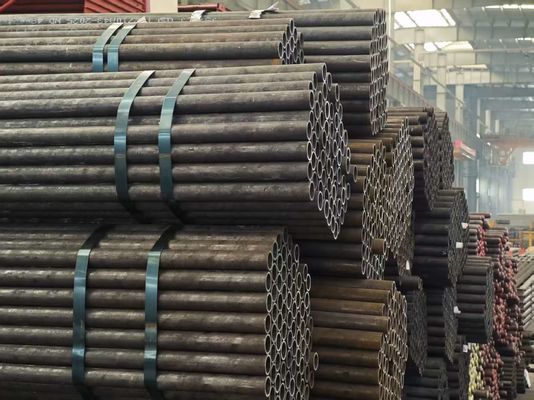

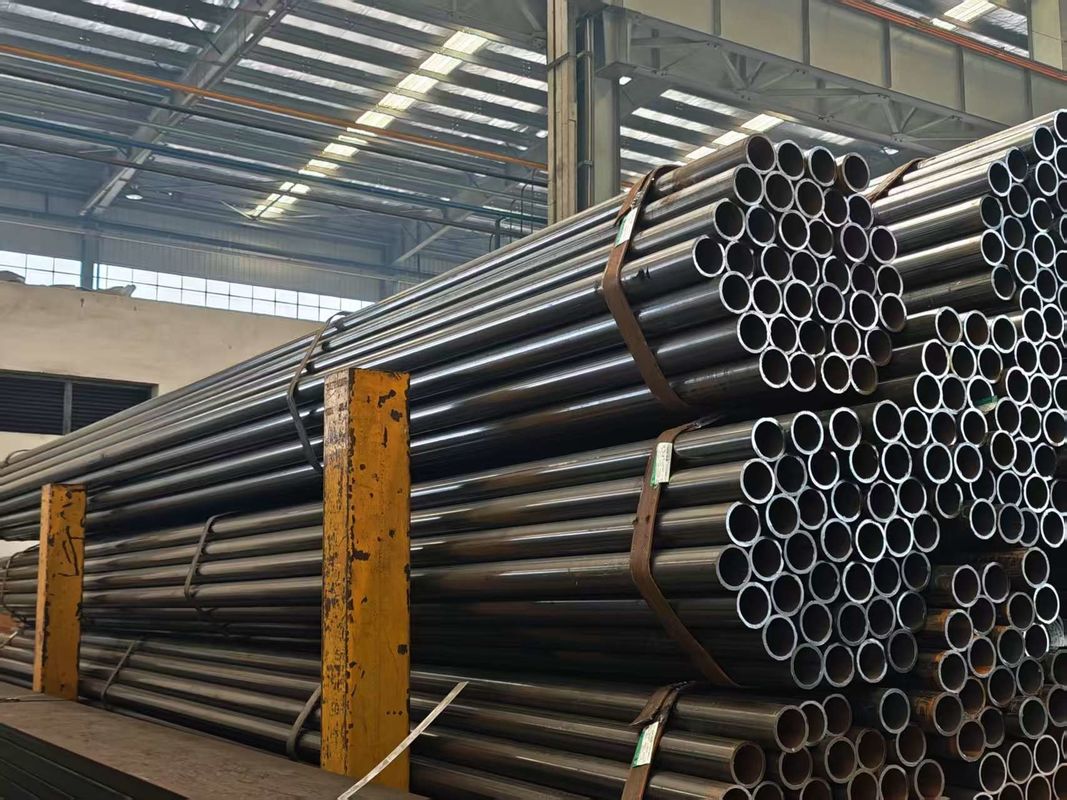

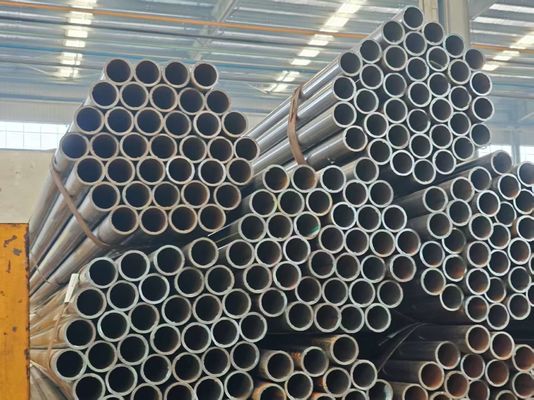

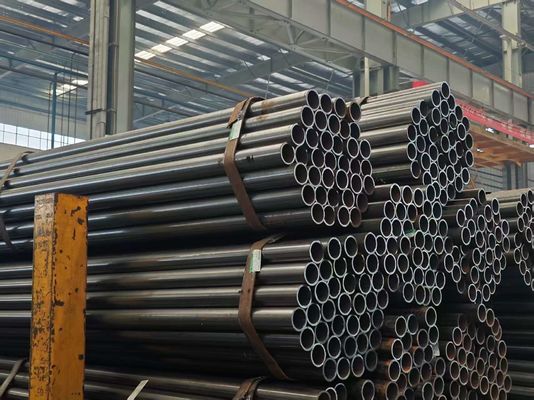

Boiler steel tubes are typically packaged in bundles in order to make transportation and handling easier. Depending on the size and weight of the tubes, bundles may consist of single tubes or multiple tubes. In general, bundles will be secured with steel bands or ropes before being loaded onto trucks, ships, or trains for shipping.
Before shipping, the bundles will be inspected to ensure they are properly secured. Once the bundles have been loaded, they will be transported to the final destination. During the shipment, the bundles will be covered with tarps to protect them from the elements.
Upon arrival at the destination, the bundles will be inspected for any signs of damage. If any damage is found, the packages will be opened and the tubes will be inspected for any signs of damage.
