Serpentine Tube Customized Design for High Pressure CFB Boiler Operation

제품 상세 정보:

원래 장소:	중국 (본토)
브랜드 이름:	HDT
인증:	ASME, TUV, SGS, ABS, PED, ISO9001, Grade A
모델 번호:	사문석 튜브

결제 및 배송 조건:

최소 주문 수량:	500 톤
가격:	800 - 9000 USD / ton
포장 세부 사항:	수출을위한 항해 포장
배달 시간:	60-75days
지불 조건:	L/C, T/T, Western Union
공급 능력:	약 1000톤/월

접촉

상세 제품 설명

재료:	스테인레스 스틸, 탄소강, 합금강	자격증:	TUV, SGS, CE, 등급 A, ISO9001인 ASME
모양:	U 벤드, 스트레이트, 코일, 스네이크 튜브	애플리케이션:	산업적 / 동력화차
온도 범위:	1000년' Ｆ까지	압력 범위:	최대 100 바
기준:	ASME, EN, ISO	색상:	사용자 정의

Serpentine Tube Customized Design for High Pressure CFB Boiler Operation

Product Description

The components of a serpentine tube structure typically include economizers, superheaters, reheaters, plus some connecting pipes and spacer pipes.

For economizers, the main parts are economizer serpentine pipes and economizer suspension pipes.

The superheater system mainly consists of: horizontal low-temperature superheaters (upper, middle, lower sections), vertical low-temperature superheaters, separator screens, separator connecting pipes, fluid cooling clamp pipes, fluid cooling spacer pipes, rear screen superheaters (screen superheaters), and final superheaters.

The reheater system includes: horizontal low-temperature reheaters (upper, middle, lower sections), vertical low-temperature reheaters, reheater cross pipes, rear screen reheaters, and final-stage reheaters.

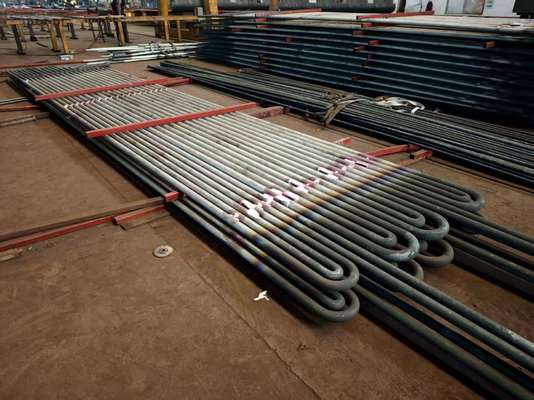

Serpentine Tube Customized Design for High Pressure CFB Boiler Operation 0

Features

Product Name: Superheater And Reheater
Service Life: Long Service Life
Design: Customized
Maintenance: Low Maintenance
Pressure: High Pressure
Safety: High Safety
Key Features:
- Designed for CFB Boiler
- Superheater Coils for high temperature and pressure operation
- Reheater Coils for additional heating of steam

Details

All the raw materials will be firstly made pipeline cutting.
It is consisted of a series of bare oil(carbon steel,alloy steel,or durable heat steel) and header and other auxiliaries. TubesΦ32,38,42 and so on,also as the request.

Setting Information
process	welding
structure	horizontal or vertical
material	carbon steel, alloy steel
tubes	φ32, 38, 42, etc.
size	customized
brand	HTEG
Warranty	18 months

Differences

Type	Advantages	Disadvantages	Supporting method
Pendant-type	1.Firm structural support	1. Flow blockage by condensed steam 2. Needs slow restart to purge the water that accumulates in the bottom.	supported from above
Inverted-type	1.Proper drainage of the condensed steam	1. Lack the structural rigidity, especially in high speed gas flow	Supported from below
Horizontal -type	1. Proper drainage 2. Good structural rigidity.	1. They do not view the flam directly so they are mainly from the convective type	Usually supported in the vertical gas ducts parallel to the main furnace.

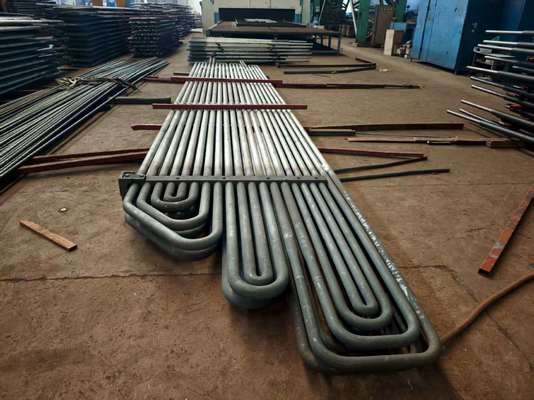

Serpentine Tube Customized Design for High Pressure CFB Boiler Operation 1

Applications

Superheaters and reheaters are engineered for high-pressure use and can be customized to meet specific needs. Their job is to raise the temperature of steam produced by boilers—which in turn boosts the heat exchange efficiency of turbines.

The coils in superheaters are made from stainless steel, carbon steel, or alloy steel. These materials ensure a long service life and are also abrasion-resistant, making them perfect for tough working environments.

Superheaters and reheaters work well in power plants that run on coal, biomass, or gas. They also have a long lifespan, which cuts down on the need for maintenance. This makes them especially useful for power plants that rely on high-pressure steam systems—they provide a reliable, efficient way to heat steam, improving the overall efficiency of the entire setup.

You’ll find superheaters and reheaters used in a range of situations. They’re ideal for power plants needing high-pressure steam (and compatible with coal, biomass, or gas fuel). Plus, since they’re customizable, they fit a wide variety of applications. And with their abrasion-resistant coil materials, they hold up in harsh conditions—all while helping turbines exchange heat more efficiently, making them a must-have part of power generation systems.

Packing and Shipping

Product Packaging:
The Superheater And Reheater product will be carefully packaged to ensure safety during transportation. It will be wrapped in protective material and placed in a sturdy cardboard box with ample padding to prevent any damage during shipping.

Shipping:
The Superheater And Reheater product will be shipped via a reputable courier service to ensure timely and safe delivery. Delivery times may vary depending on the destination, but typically range from 3-7 business days. Customers will receive a tracking number once the product has been shipped so they can monitor its progress and estimated delivery date.

Company Introduction

Hua Dong Energy Technology Started to Produce Serpentine Tube Since 1985,Up to now already supply more than 300,000 tons Steel Serpentine Tube to over 30 countries.

Hua Dong Energy Technology deals with Austenitic Stainless Steel, Nickel Alloy Steel (Hastelloy , Monel, Inconel, Incoloy ) seamless and welded pipe and tube already more than 35 years, every year sell more than 50000 tons of steel pipe and tube. Our client already cover more than 45 countries, Like Italy, UK, Gernmany, USA, Canada, Chile, Colombia, Saudi Arabia, Russia, Korea, Singapore, Austrial, Poland, France , ....And our group branch company and factory have been already approved by :ABS, DNV, GL, BV, PED 97/23/EC, AD2000-WO, GOST9941-81, CCS, TS, CNNC, ISO9001, ISO 14001.

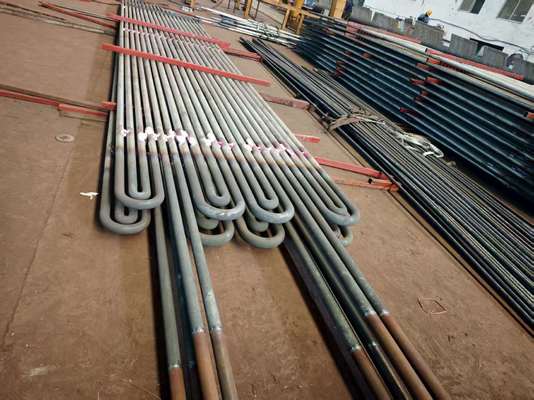

Serpentine Tube Customized Design for High Pressure CFB Boiler Operation 2
