장자강 시 Hua Dong 에너지 기술 Co., 주식 회사.
영업 및 지원:

|
| 원래 장소: | 중국 (본토) |
| 브랜드 이름: | HDT |
| 인증: | ASME, TUV, SGS, ABS, PED, ISO9001, Grade A |
| 모델 번호: | HDT-ST001 |
| 최소 주문 수량: | 5T |
|---|---|
| 가격: | 800 - 9000 USD / ton |
| 포장 세부 사항: | 수출을위한 항해 포장 |
| 배달 시간: | 60-75days |
| 지불 조건: | L/C, T/T, Western Union |
| 공급 능력: | 약 100000 톤 / 월 |
| 재료: | 스테인레스 스틸, 탄소강, 합금강 | 자격증: | TUV, SGS, CE, 등급 A, ISO9001인 ASME |
|---|---|---|---|
| 크기: | 사용자 정의 | 모양: | U 벤드, 스트레이트, 코일, 스네이크 튜브 |
| 애플리케이션: | boiler&heat 교환기, 에너지, 핵인 석유 | OD: | 1.5 1500 밀리미터에 |

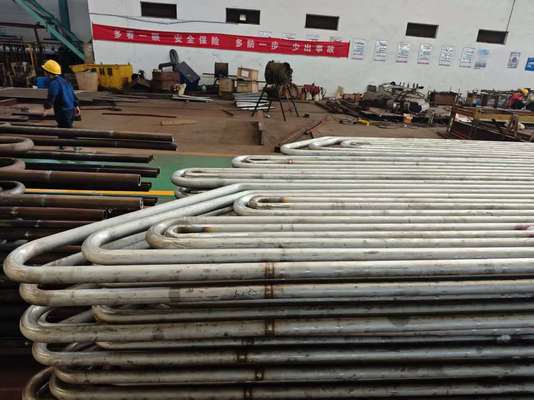

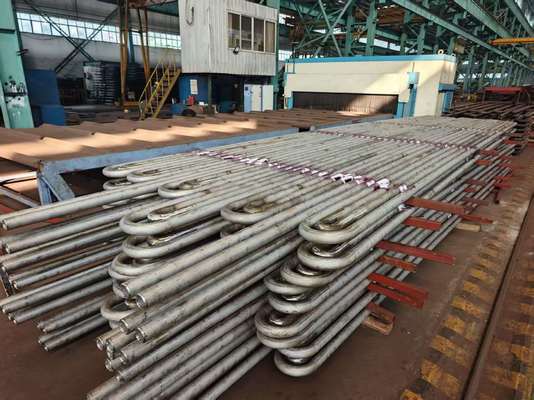

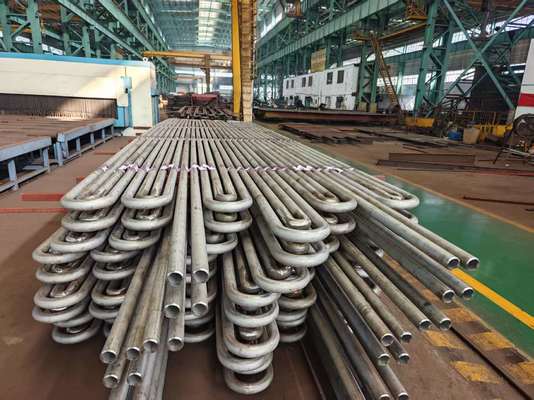

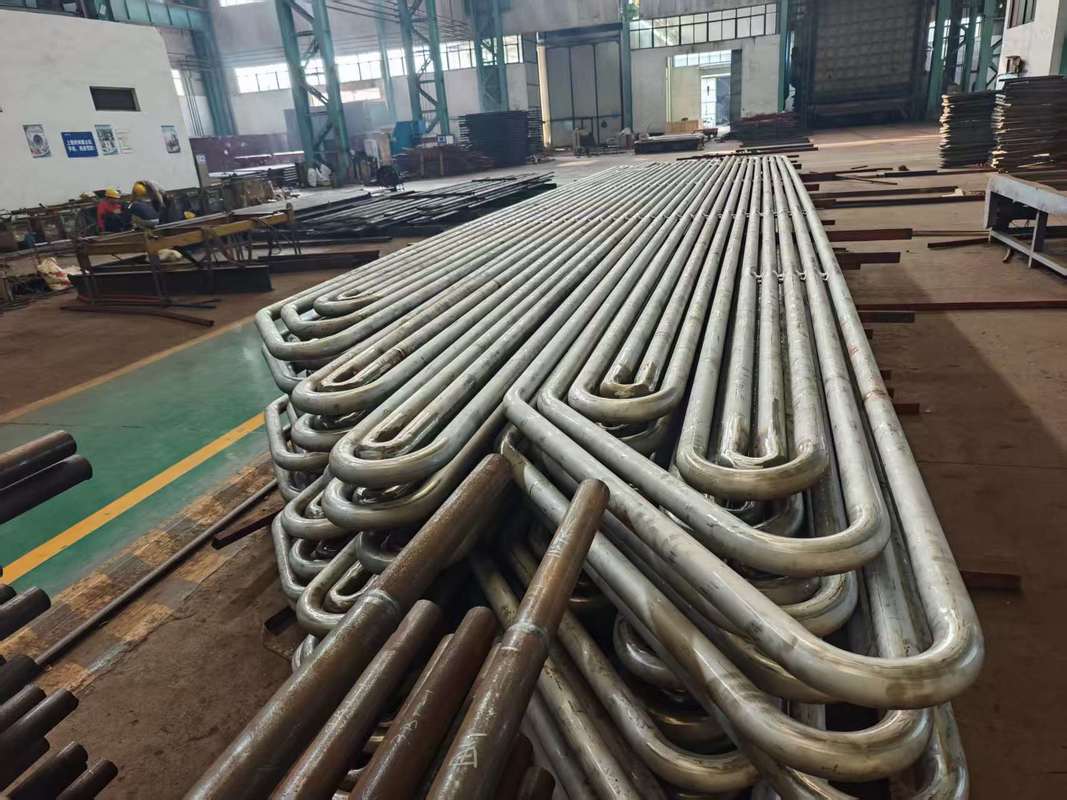

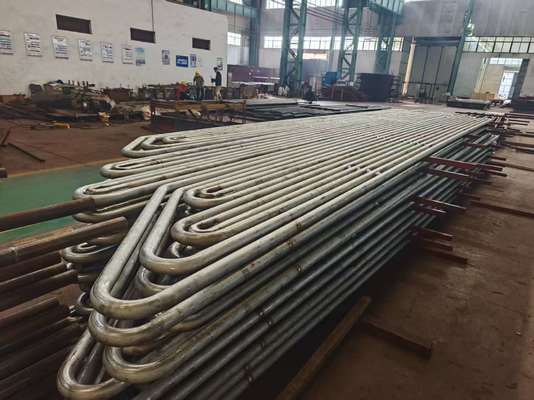

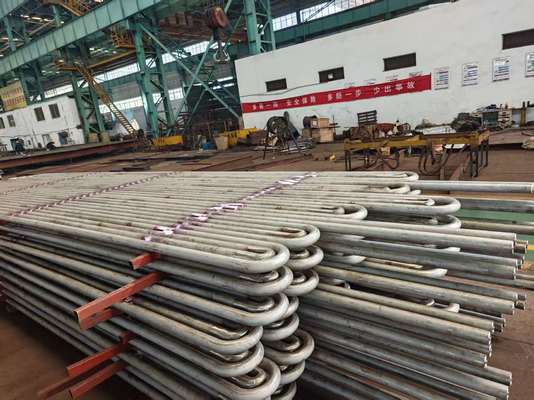

Customized Serpentine Fin Tube Economizer Precision-Wound For Peak Transfer
Descriptions
Economizers, or economisers, are mechanical devices intended to reduce energy consumption, or to perform useful function such as preheating a fluid. The term economizer is used for other purposes as well. Boiler, power plant, heating, Refrigeration, ventilating, and air conditioning (HVAC) uses are discussed in this article. In simple terms, an economizer is a heat exchanger.
Technical Parameter
| Model | Name | Specification | Quantity | Working Pressure |
Single Row Water Pressure Test MPa |
Integral Test Pressure MPa |
| 35T/h CFB/CFBB/CFBC Boiler | Bare Tube Economizer |
32*3; 20-GB3087 |
124 Rows (Including high temperature, medium temperature and low low temperature three sections) |
4.54MPa | 9.1MPa | 5.25MPa |
| 35T/h CFB/CFBB/CFBC Boiler | Spiral Fin Tube Economizer |
32*3; 20-GB3087 |
50 Rows (Including high temperature and low temperature sections) | 4.54MPa | 9.1MPa | 5.25MPa |
| 35T/h Chain Grate Boiler | Spiral Fin Tube Economizer |
38*3; 20-GB3087 |
46 Rows Rows (Including high temperature and low temperature) | 4.54MPa | 9.1MPa | 5.25MPa |
| 35T/h Chain Grate Boiler | Bare Tube Economizer |
38*3; 20-GB3087 |
99 Rows (Including high temperature, medium temperature and low low temperature three sections) | 4.54MPa | 9.1MPa | 5.25MPa |
| 35T/h Chain Grate Boiler | Bare Tube Economizer |
32*3; 20-GB3088 |
99Rows (Including high temperature, medium temperature and low low temperature three sections) | 4.54MPa | 9.1MPa | 5.25MPa |
| 35T/h CFB/CFBB/CFBC Boiler | Bare Tube Economizer |
32*3; 20-GB3087 |
93 Rows (Including high temperature, medium temperature and low low temperature three sections) | 4.73MPa | 9.5MPa | 5.93MPa |
| 35T/h CFB/CFBB/CFBC Boiler | Bare Tube Economizer |
32*3; 20-GB3087 |
108 Rows (Including high temperature, medium temperature and low low temperature three sections) | 4.73MPa | 9.5MPa | 5.93MPa |
| 48T/h CFB/CFBB/CFBC Boiler | Spiral Fin Tube Economizer |
38*4; 20G-GB5310 |
45 Rows | 10.92MPa | 21.84MPa | 12.64MPa |
| 75T/h CFB/CFBB/CFBC Boiler | Bare Tube Economizer |
32*3.5; 20G-GB5310 |
156 Rows (Including high temperature, medium temperature and low low temperature three sections) | 6.28MPa | 12.56MPa | 7.27MPa |
| 75T/h CFB/CFBB/CFBC Boiler | Bare Tube Economizer |
32*3.5; 20G-GB5310 |
114 Rows (Including high temperature, medium temperature and low low temperature three sections) | 4.7MPa | 9.1MPa | 5.25MPa |
| 75T/h CFB/CFBB/CFBC Boiler | Spiral Fin Tube Economizer |
32*3; 20-GB3087 |
72 Rows (Including high temperature, medium temperature and low low temperature three sections) | 4.54MPa | 9.1MPa | 5.25MPa |
| 75T/h CFB/CFBB/CFBC Boiler | Spiral Fin Tube Economizer |
32*3; 20G-GB5310 |
72 Rows (Including high temperature and low temperature sections) | 6.28MPa | 12.56MPa | 7.27MPa |
| 75T/h CFB/CFBB/CFBC Boiler | Bare Tube Economizer |
32*4; 20G-GB5310 |
114 Rows (Including high temperature, medium temperature and low low temperature three sections) | 6.28MPa | 12.56MPa | 7.27MPa |
| Materials | Carbon Steel Or Alloy Steel | |||||
| Type | bare tube economizer;finned tube economizer; spiral finned tube economizer;cast iron economizer for power plant/station boiler and industrial/commercial boilers; | |||||
| Brand | Jinan Yuanda | |||||
| Application | Boiler heat exchanger parts for Coal Fired Steam Boiler/Coal Fired Hot Water Boiler/CFBB bed boiler | |||||
| Remarks | Customized order is also accepted. | |||||
Advantages
3.1. Excellent anti-wear performance
3.2. Compact structure
3.3. High thermal efficiency
3.4. Stability
Company profile
Zhangjiagang Hua Dong Energy Technology Co., Ltd. is a high-tech enterprise specialized in producing all kinds of stainless, carbon and alloy steel tubes and pipes, steel plates which are widely used in the field of boiler&heat exchanger, energy, petrochemical, mining, food, paper, gas and fluid industry. And we have passed the attestations including ASME, TUV, Grade A, ISO9001, EN12952, EN10216, SO3834.
The company is the subsidiary of Zhangjiagang Hua Dong Boiler Co., Ltd, which is the most leading boiler and boiler parts manufacturer in China with a history of 35 years and annual turnover of 110 million U.S.A. dollars. Our products have been exported to over 30 countries like United States, Australia, Vietnam, Pakistan, Albania, Cambodia, India, Indonesia, South Korea, the Philippines, Turkey, Saudi Arab, Germany, Russia, Chile, Syria, Thailand, Bangladesh, France, Algeria, Mongolia and Singapore, Cuba, Iraq, Italy, Spain, Japan, Yugoslavia, Sri Lanka, the Czech republic, kyrgyzstan, Canada, Malaysia, the United Kingdom and so on.
