Custom Durable Stainless Fin Tubes for Industrial Boiler
Product Specifications
| Item | Base Tube O.D (mm) | Base Tube Thickness (mm) | Fin Height (mm) | Fin Thickness (mm) | Fin Pitch (mm) |
|---|
| Range | 25.4 ~ 1600mm | 2.5 ~ 40mm | 0.5 ~ 20.0mm | 0.5 ~ 3.0mm | 5 ~ 25.4mm |
| Material | Carbon Steel, Alloy Steel, Stainless Steel |
| Length | 0 < L < 12000mm |
| Product | H-fin Tube |
|---|
| Base Pipe | Welded or Seamless |
|---|
| Material | Carbon steel, alloy steel, stainless steel, non-ferrous alloys and nickel alloys |
|---|
| Application | H economizer, H evaporator, H superheater, H air heater and more |
|---|
Product Introduction
Boiler economizers are heat exchange devices with finned tubes that heat liquids, typically water, up to temperatures that do not exceed the boiling point. We manufacture three types of boiler economizers: bare tube economizers, H finned tube economizers, and spiral finned tube economizers. The H-finned tube economizer is a highly efficient heat exchanger consisting of H-finned tubes.
Compared with bare tube economizers, H-finned tube economizers significantly increase the heat exchange surface area while reducing the number of tubes required. This design also expands the flue gas flow area, reducing flow velocity and minimizing abrasion.

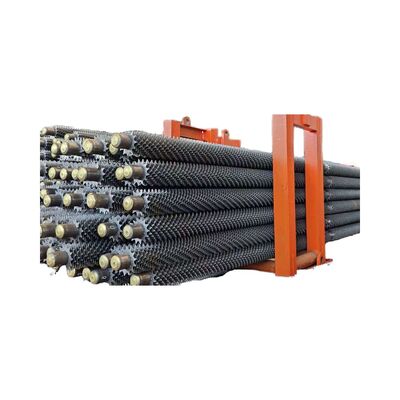

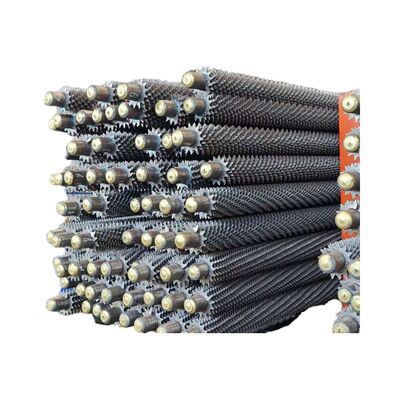

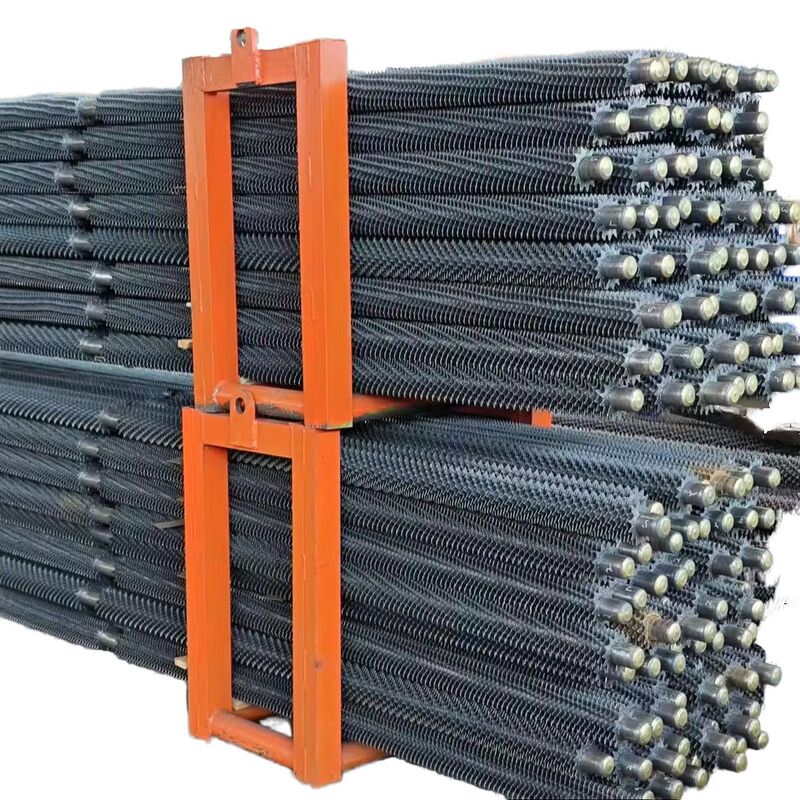

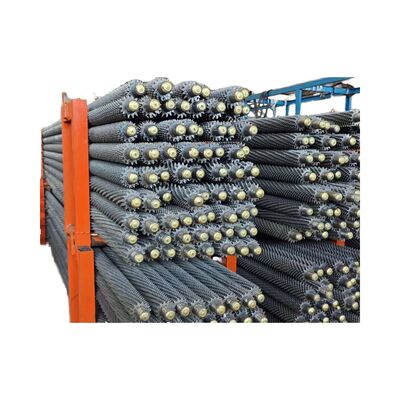

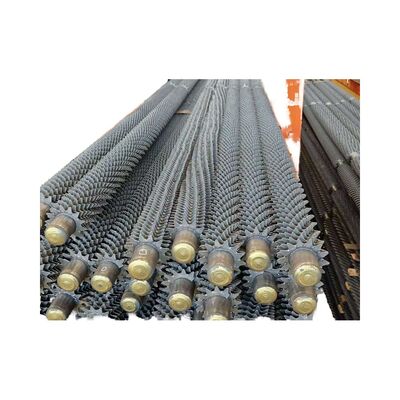

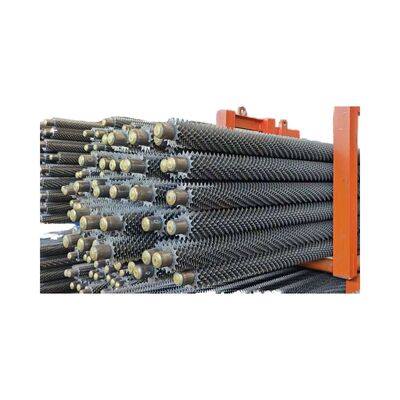

H-finned tubes can be manufactured as double H finned tubes, providing high rigidity suitable for long tube rows. The spiral finned economizer is a newly designed heat transfer equipment that utilizes spiral fin tubes to overcome serious abrasion issues and extend service life.
Function
The primary function of the economizer is to "economize" or reduce cooling costs. By enabling compressor shutdown while maintaining adequate cooling capacity, significant energy savings can be achieved.
Boiler Economizer Parameters
| Description | Boiler economizer |
|---|
| Material | Alloy steel, Carbon steel, SA210C, SA213T22, etc. |
|---|
| Material Standard | ASTM, EN or ISO etc. |
|---|
| Dimension | Customization |
|---|
| Weight | Min: 10 ton, Max: 1000 ton |
|---|
| Smelting Process | EF+LF+VD |
|---|
| Process | Material → Ingot → Hot/Cold-Rolling → Heat treatment (Normalizing + tempering) → Inspection → Rough machining → UT → 2nd Heat treatment → Finishing machining → Inspection |
|---|
| UT Standard | ASTM A388 or EN10228, etc |
|---|
Company Profile
Zhangjiagang Hua Dong Boiler Co., Ltd., founded in 1985, is a specialized enterprise manufacturing power station boilers, industrial boilers, HRSGs, waste incineration boilers, biomass boilers and related heating surface components in China. We provide clients with integrated services from design and manufacturing to installation and maintenance.
Our Advantages
38 years experience in industry research, development and manufacturing with sufficient production capacity
Comprehensive quality assurance and control system
International quality certifications
Worldwide sales and distribution network
Quality Control
- Impact test and Strength calculation report with applied materials information
- 100% NDT (non-destructive inspection) report of steel plate, tube and electrode
- X-ray, γ-ray and liquid penetrant test inspection report for welding seams
- Hydraulic test report to ensure standard working pressure and safety
We maintain a complete quality assurance and control system certified according to International Quality Standards. Our quality assurance system complies with national regulations, standards, and technical requirements, ensuring 100% control over processes and products. All products undergo stringent inspection and testing throughout manufacturing to guarantee compliance with contract requirements and standards.
Certifications
We hold verification certificates including: ISO 9001:2015; CE certificate; EN ISO 3834-2; ASME certificate with "S", "U" and "NB" stamps, and more.
Global Sales
Frequently Asked Questions
Q1: How long is the warranty period?
We provide 18 months warranty for all spare parts (excluding fragile parts).
Q2: How can we guarantee quality?
1) All machines strictly comply with ISO quality and CE system requirements
2) Each procedure is crafted by professional skilled labor, followed by particular QC
3) All product information can be checked in our efficient management system
Q3: What can you buy from us?
CFB Boiler, HRSG Boiler, Boiler Economizer, Boiler Fin tube, Boiler Air preheater, Boiler superheater, Boiler membrane wall, Boiler manifold headers and other pressure spare parts.
Q4: What kind of service do you provide?
Before sales: Product information, market research forecasting, product customization, product processing, consultation and other services
After sales:
1. Technical training according to customer requirements
2. Replacement under warranty
3. Maintenance spare parts supply
4. Regular customer callbacks and visits
5. Timely response to complaints and consultations
Accepted Delivery Terms: FOB, CFR, CIF, EXW, FCA
Accepted Payment Currency: USD, CNY
Accepted Payment Type: T/T, L/C, MoneyGram, Western Union, Cash
Languages: English, Chinese
Q5: Are you a factory or trading company, where are you located?
We are a factory located just 130km (2 hours by car) from Shanghai Airport. We offer pickup service at Shanghai for your visit.
